mounting the fixture
tools required: phillips screwdriver
turn off power to eletrical connections.
wiring must be performed by a qualified electrician.
make electrical connections according to the loacl and national electrical codes.
this product is suitable for 120V to277V wiring.
remove fixture from packaging along with hardware bag that contains a junction box gasket and wire nuts.
mounting of fixture can be achieved by one of the methods below
drill the junction box cast detail and use 10-24 screws
or drill the c-location holes and use fasteners.
install the fixture on the wall making sure to use the provided junction box gasket to protect from water.fixture should be oriented as shown in pictures at the top of this instruction page.
finish wiring the fixture. there are 5 wires provided. black wire. green or bare copper wire. grey/pink wire is dim if dimming is not desired cap this wire. purple wire is dim if dimming is not desired cap this wire.

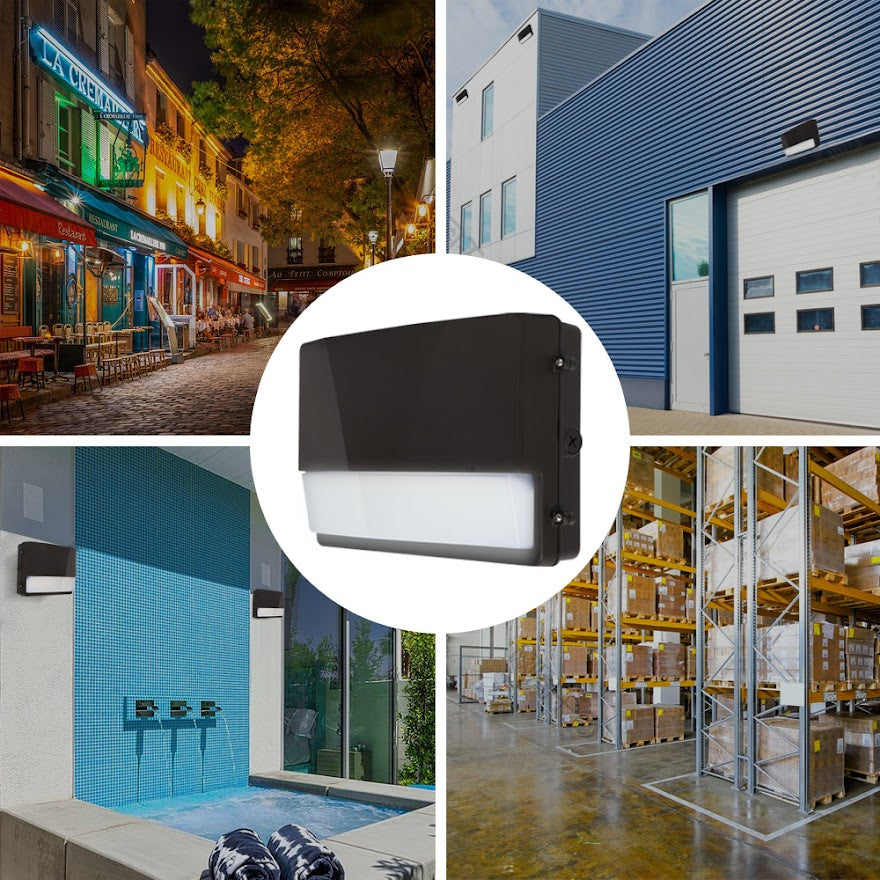

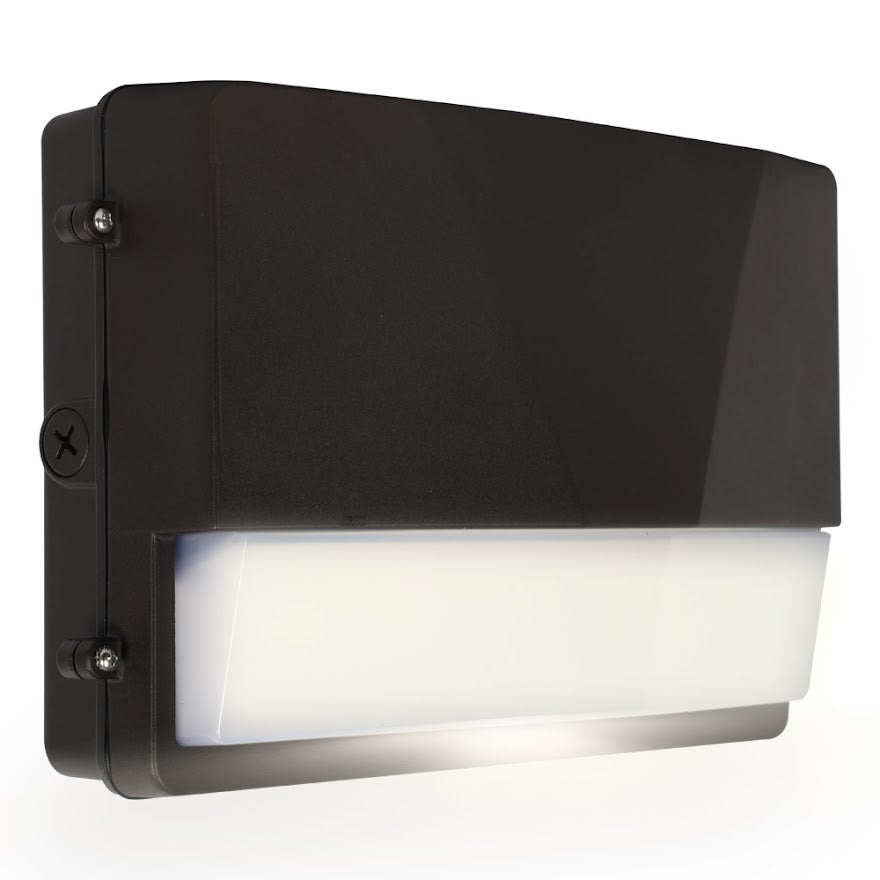

1.The 70W LED Wall Pack light is able to handle wet weather conditions. it is a suitable outdoor led light used widely for buildings ,outdoor areas, warehouse etc.
2. 5 Color Selectable, You’ll find the perfect light through the 5 colors.
3.Easy to Install ,The LED Wall Pack Light with preconfigured Junction Box knockouts for fast and easy installation.
4.This commercial outdoor security light with photocell can automatically turns ON at sunset and OFF at sunrise.

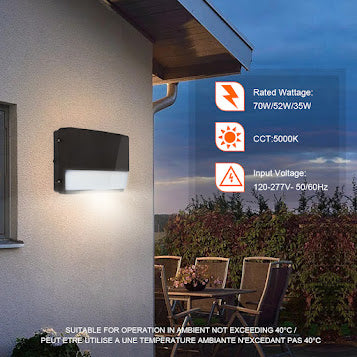

5. Model: ZPS-MB421-70W. Rated Wattage: 70W/52W/35W. CCT: 4000K/5000K. Luminous Flux : 9800lm -5100lm .
